Pedestal Systems
Pedestal Systems
Adjustable pedestal ranges offering tool-free, four-step installation for raised flooring systems. Compatible with ceramic, natural stone, wood, WPC composite and terrazzo coverings, and with aluminium support profiles.
KP RANGE
Adjustable Height Range
A base pedestal range offering adjustable height from 21–902 mm. Precise tilt adjustment of up to 5% on the bodies.
KP-21-27
KP-27-40
KP-40-64
KP-64-110
KP-110-202
KPS RANGE
Angle and Height Adjustable Range
An adjustable pedestal range for sloped surfaces, offering angle compensation of up to 7°.
KPS-40-64-D3
KPS-40-64-P3
KPS-DX
KPS-PX
KPF RANGE
Fixed Height Range
A one-piece, fixed-height pedestal range — 13 mm and 10 mm types can be stacked.
KPF-13-D3
KPF-10-PF3
KPF-10-S3
KA-SC-DX
| Feature | Value |
|---|---|
| Adjustable height range | 21–902 mm (including risers) |
| KPS angle compensation | Up to 7° |
| KA-SC-DX joint angle compensation | Up to 5° |
| PCX pad angle compensation | Up to 2° |
| Joint spacing thickness options | 2 / 3 / 4 / 5 mm |
| KPF fixed heights | 13 mm and 10 mm (stackable) |

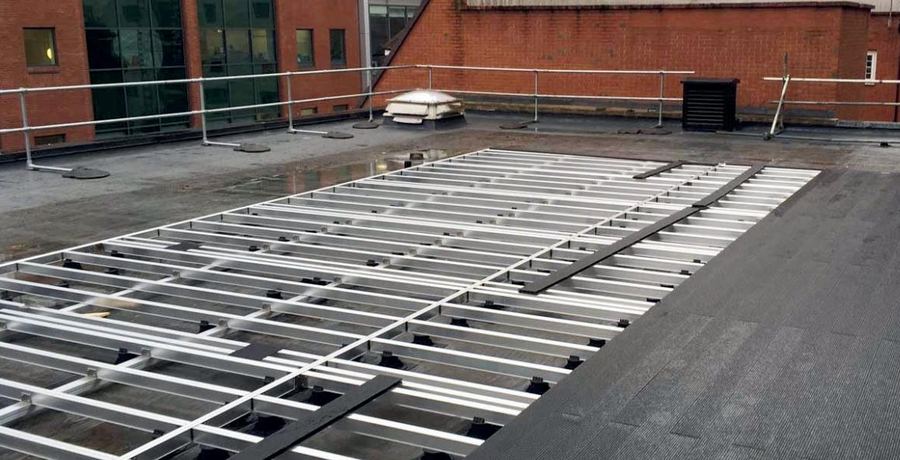

| Aluminium profile compatibility | 40–50 mm width |
Accessory Range (KA)
Pads, risers, joint and frame partsPDX Series PadsSound-dampening PVC pad, 2 mm standard thickness
PCX Series PadsAngled PVC pad, 2° fixed standard angle
Risers (KA-EX)Standard 100 mm height-adding piece
Joint / Frame PartsDX (joint spacer), SX (intermediate joint), CXX/CT-CY (frame), PSX (profile socket), CWX (frame fitting)

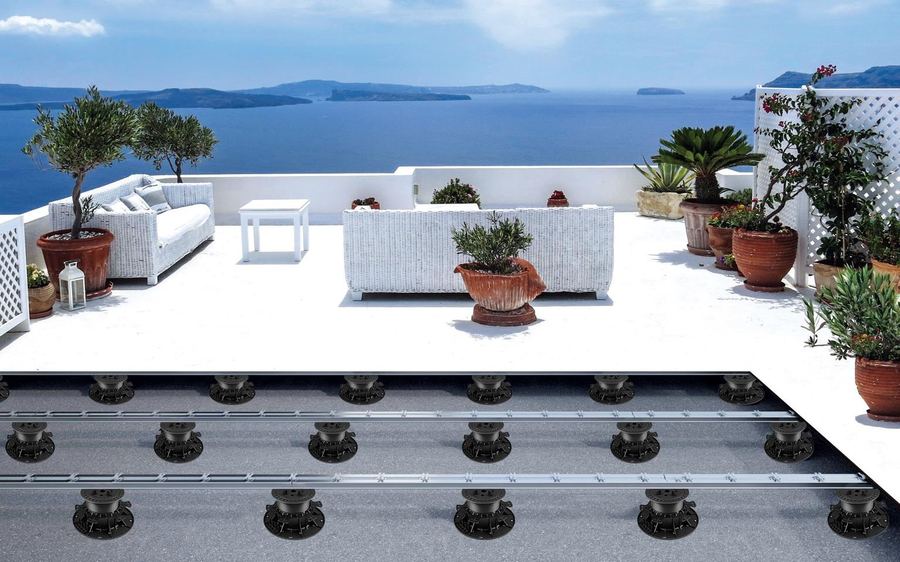

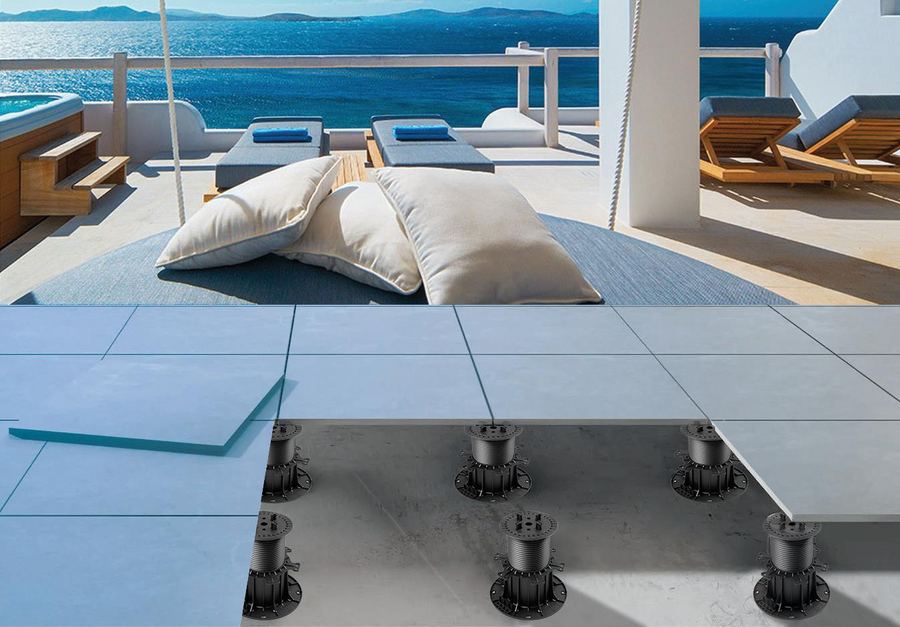

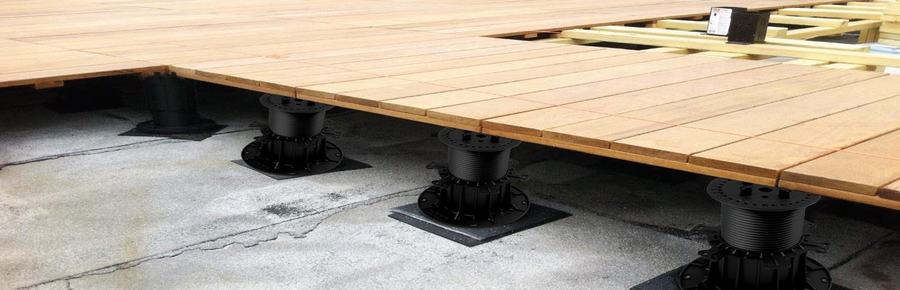

Application Gallery
Real project and installation photographs
Detailed Information
Email
Get in touch with us about Pedestal Systems
Share your project measurements and colour preference, and let’s work out the most suitable system and quantity together.
